19" Rugged Transflective Sun Light Readable Marine Bridge System Display. Optional Elo SAW TouchScreen Model:(WPM-MAR1900A1)
Dimming 0~100%
Sunlight Readable
PIP
IP65 Proof
24V DC input
Anti-Corrosion (Option)
OSD from panel
AR Safety Glass (option)
Touch Screen
|
 |
|
Features
• Hyper Dimming: Dimming knob control backlight brightness from nearly 0% to 100%
• High Brightness LCD Panel: Transflective film technology enhance visibility

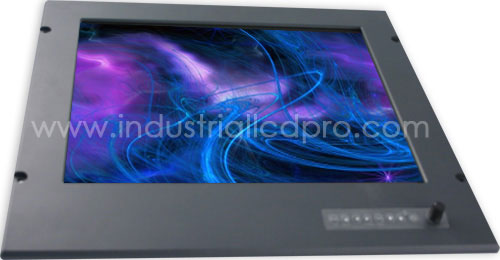

• Ruggedized IP65 Proof: Panel (flush) mount IP65 aluminum housing with powder coating design (IP54 rear)

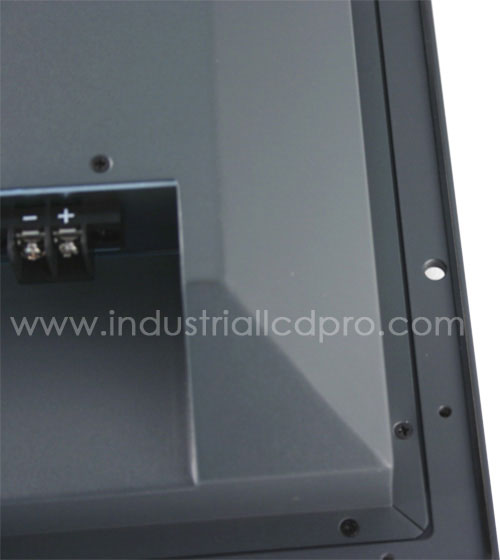

• Wide Voltage Range Input: 24V DC power input acceptable(AC power for option)
• Touchscreen: High quality touchscreen / AR protection glass for option
• Multiscan Function:PIP(picture in picture) function and multi-video inputs

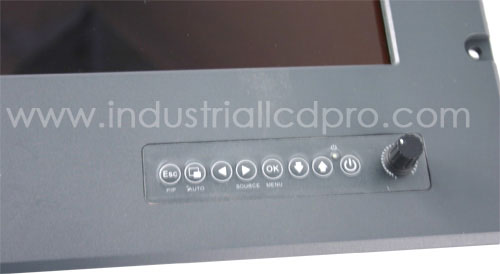

• IP65 OSD front panel Design: Ease of use front panel OSD control
• Anti-shock and Vibration: Enhanced shock and vibration resistance
Specs:
• Pixel Number : 1280x1024
• Pixel Pitch(R&B) : 0.294 (H) x 0.294 (V)
• Contrast Ratio : 1000:1 (typ.)
• Light Intensity : 400 (typ.)
• Viewable Angle : -80~80 (H); -80~80 (V)
• Active Display Area : 376.32(H) x 301.06 (V)
• Max Colors : 16.7M (8bits/color)
more...
|
